TL7 Series Toggle Switches |
Features: *1, 2, pole circuitry
*One hole mounting for easy installation
*Multi-circuits offered
*2 & 3 position with maintained and momentary action
*Molded-in terminal inserts
*Molded-in terminal numbers
*Captive cover screws |

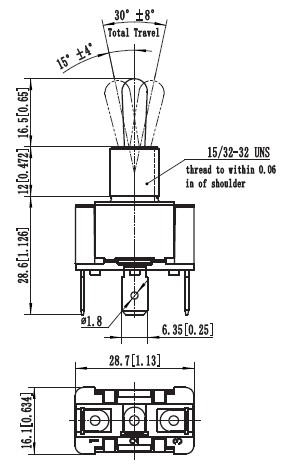

Installation dimensions:
![](/en/d/file/p/2019-05-21/TL7 -Q drawing.jpg) |
Specifications: IP & NEMA Ratings: IP20 (NEMA 1)
Service Life: Mechanically: 1 million operation
Electrically: 20,000 operation at rated loads
Operating Temperature: -46 ~ +85C (-50 ~ +185F)
Electrical Rating: 20A 125VAC / 10A 250VAC(GP) 1.5HP 125/ 250VAC
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
![TL7.jpg](/en/d/file/p/2019-03-04/TL7%20Selection%20guide.jpg)
